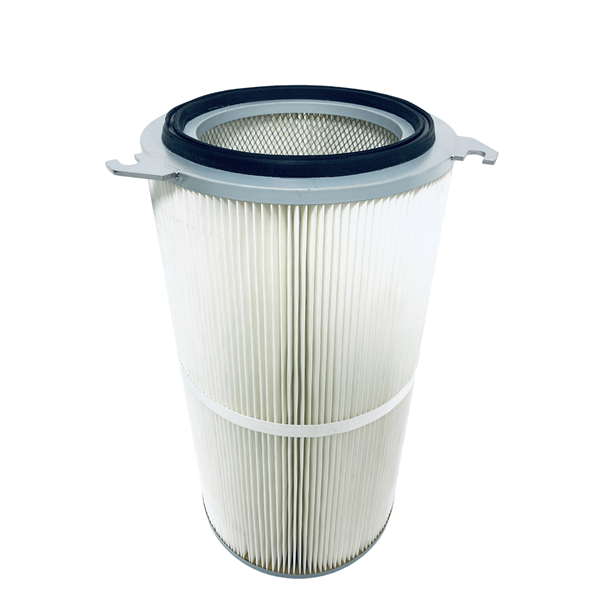

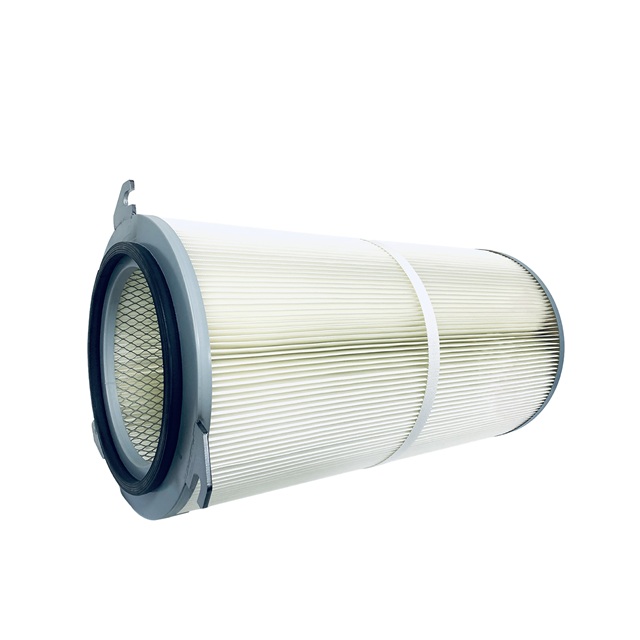

Industrial Quick-Release Polyester Air Filter Cartridge for Dust Collection Systems

Industrial Quick-Release Polyester Air Filter Cartridge for Dust Collection Systems


Availability:

Quantity:

Inquire Add to Basket

Nozzle Spraying Nozzle Filter Replacement Filter Element Hepa Filter

Product Description

Core Advantages

1.Universal Quick-Install: Exclusive 3-ear structure fits most filter cartridge dust collectors, which is convenient and cost-effective.

2.High-Efficiency Precision Filtration: Replacement filter element with 1-7μm multi-precision options, 95%-99.9% filtration efficiency, delivering HEPA filter-level purification for diverse working conditions.

3.Versatile Functional Options:Available with filter media of flame-retardant/anti-static/oil-water proof functions to meet specific application requirements.

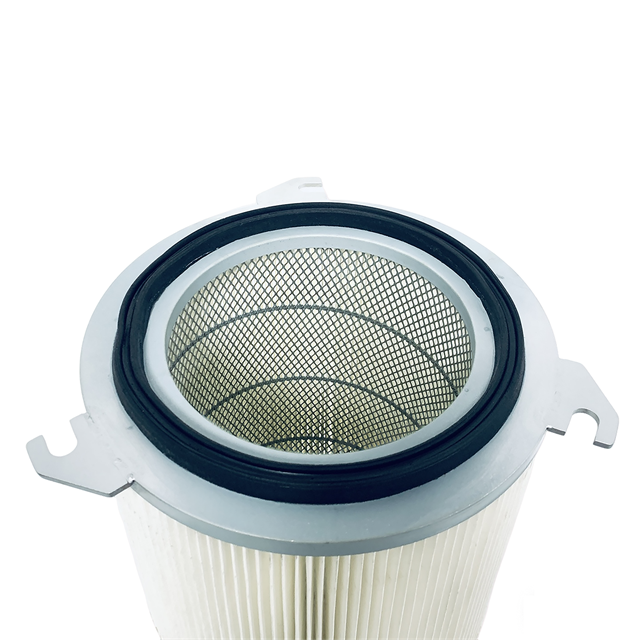

4.Durable Structure: Filter cartridge with galvanized mesh inner core and galvanized caps, ensuring rust and corrosion resistance while providing reliable protection and structural support.

5.Superior Sealing: Special rubber gasket and epoxy resin sealing keep leak-proof/cap-off resistant/powder-proof, ensuring filtration efficiency.

6.Customizable Specifications: Cylindrical/conical options; bottom cap style, filter media & filtration area can all be tailored to your needs.

Versatile Functions & Wide Applications

1.Flame-Retardant: For gas turbine power plants, gas turbine air intake systems, and industrial sites needing fire safety.

2.Anti-Static: For powder plants, powder coating plants, and dust collector filter elements – prevents dust buildup.

3.Oil-Water Proof: For central air conditioning, oxygen plants, steel mill oxygen blast stations, blast furnace air supply

stations, and other harsh conditions.

4.Standard Universal: No special functions, fits regular industrial dust removal scenarios - cost-effective option.

Order Terms

1.MOQ: 20pcs

2.Shipping Terms: FOB, CIF Shanghai

3.Packaging: Standard Export Carton

4.Payment Terms:

1)For small orders: 100% T/T in advance

2)For regular/large orders: 30% T/T deposit for production, 70% balance due before delivery

3)Flexible terms negotiable for long-term cooperation.

Available Filter Media
FR-A (Japanese TORAY)
Type		FR-A (Japanese TORAY)
Unit Weight (g/m²)		260
Thickness (mm)		0.62
Filter Precision (μm)		1-2
Tensile Strength (N/50mm)	MD	1160
	CD	700
Filter Efficiency		99.99%
Application Environment		Suitable for environments requiring high filtration precision and excellent performance.
Application Field		Filtration & Dust Collection

FR-C (made in China)
Type		FR-C (made in China)
Unit Weight (g/m²)		240
Thickness (mm)		0.6
Filter Precision (μm)		5-7
Tensile Strength (N/50mm)	MD	700
	CD	660
Filter Efficiency		≥ 95%
Application Environment		Applicable to dry dust with low adhesion and large particles, enabling higher air flow velocities.
Application Field		Filtration & Dust Collection

FR-F4 (made in China)
Type		FR-F4 (Polyester Fiber Fabric Coated with PTFE Film)
Unit Weight (g/m²)		240
Thickness (mm)		0.75
Filter Precision (μm)		5
Tensile Strength (N/50mm)	MD	750
	CD	700
Filter Efficiency		≥ 99%
Application Environment		Boasts flame-retardant properties, applicable to spark-producing occasions (e.g., welding fumes, laser cutting) and ultrafine powder handling scenarios (conveying, filtration, recovery).
Application Field		Filtration & Dust Collection

FR-AL (made in China)
Type		FR-AL (Polyester Fiber Fabric Coated with Aluminum Film )
Unit Weight (g/m²)		240
Thickness (mm)		0.75
Filter Precision (μm)		5
Tensile Strength (N/50mm)	MD	800
	CD	600
Filter Efficiency		≥ 99%
Application Environment		Ideal for environments demanding anti-static, anti-spark, and explosion-proof capabilities.
Application Field		Filtration & Dust Collection

FR-F (made in China)
Type		FR-F (Polyester Fiber Fabric Coated with Fluororesin Film )
Unit Weight (g/m²)		240
Thickness (mm)		0.6
Filter Precision (μm)		5
Tensile Strength (N/50mm)	MD	800
	CD	650
Filter Efficiency		≥ 99.9%
Application Environment		Primarily designed for damp, grease-containing, and large-particle dust, with compatibility for dry large-particle dust.
Application Field		Filtration & Dust Collection

Specifications
Shape	Cylindrical and Conical options available
Top Cap	Galvanized Steel, rust-resistant (open design)
Bottom Cap	Galvanized Steel, rust-resistant (standard closed type with hole; open type customizable upon request)
Inner Core	Galvanized Mesh structure for stable support
Gasket	Specialty rubber material ensuring leak-proof sealing and enhanced overall airtightness
Filter Media	100% Polyester, 100% Cellulose, Polyester-Cellulose Blend; Domestic & Imported options available
Appearance	White/Grey/Blue

325mm Standard Outer Diameter Specification
Standard Model	Size (mm)					Filtration Precision (μm)	Filtration Area (m²)			Thickness (mm)
	A (Outer Dia.)	B (Inner Dia.)	D (Filter H)	E (Total H)	G (Gasket H)		Pleat Depth=40 (Pleat Count=130)	Pleat Depth=35 (Pleat Count=120)	Pleat Depth=30 (Pleat Count=90)
	A (Outer Dia.)	B (Inner Dia.)	D (Filter H)	E (Total H)	G (Gasket H)		Pleat Depth=40 (Pleat Count=130)	Pleat Depth=35 (Pleat Count=120)	Pleat Depth=30 (Pleat Count=90)
325*600	325	215	600	613	13	5	6.2	5.1	3.3	0.62
325*660	325	215	660	673	13	5	6.9	5.6	3.6	0.62
325*700	325	215	700	713	13	5	7.3	5.9	3.8	0.62
325*750	325	215	750	763	13	5	7.8	6.3	4.1	0.62
325*800	325	215	800	813	13	5	8.3	6.8	4.4	0.62
325*900	325	215	900	913	13	5	9.4	7.6	4.9	0.62
325*1000	325	215	1000	1013	13	5	10.4	8.4	5.4	0.62
325*1200	325	215	1200	1213	13	5	12.5	10.1	6.5	0.62
325*1600	325	215	1600	1613	13	5	16.6	13.4	8.6	0.62
Notes: Standard outer diameters available: 350mm, 325mm, 300mm, 280mm, 240mm, 230mm Standard heights: 600mm, 660mm, 700mm, 750mm, 800mm, 900mm, 1000mm, 1200mm,1600mm For other dimensions or custom sizes, please contact us—we will provide relevant specifications and data.
