Core Characteristics

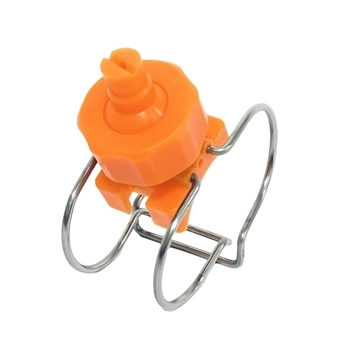

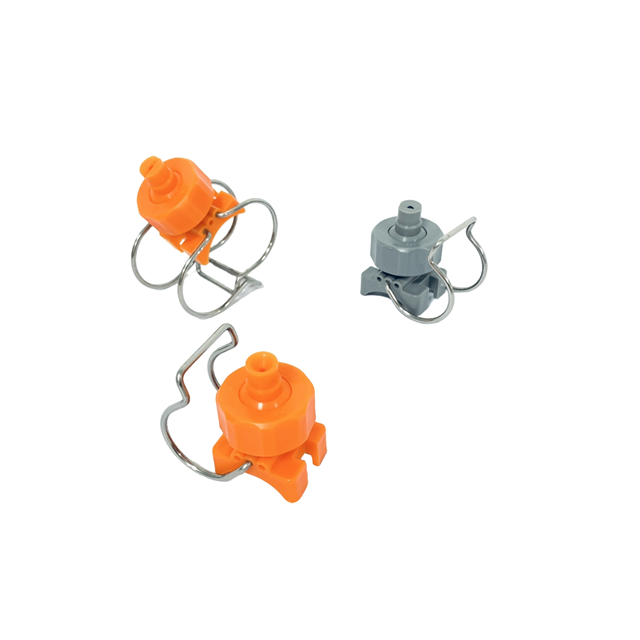

1.Tool-Free & Anti-Clogging: Clamp-On Water Spray Nozzle for quick install and disassemble, making it easy to remove debris to minimize clogging risk.

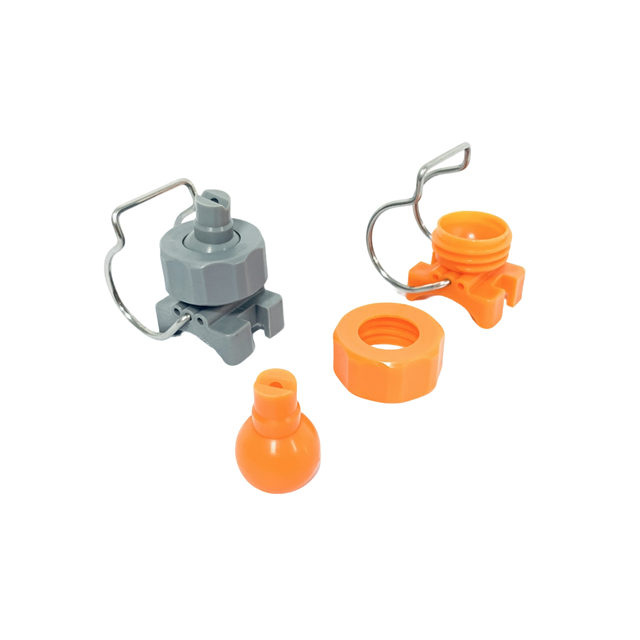

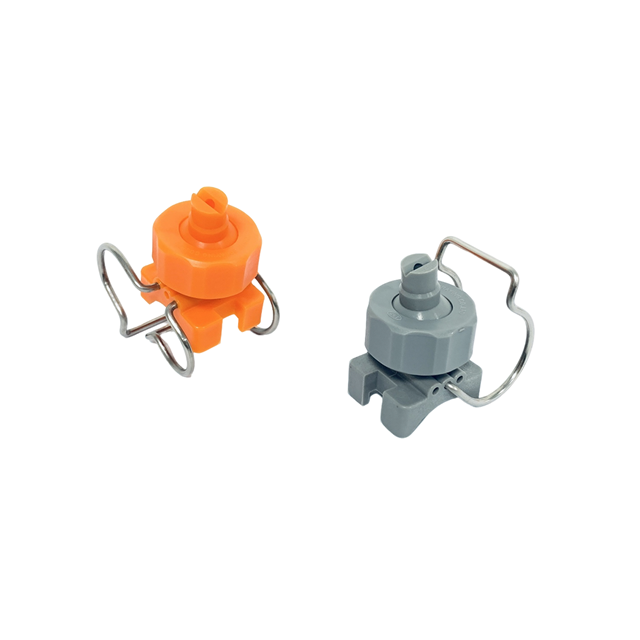

2.Precise Direction Adjustment: Built-in adjustable ball allows precise adjustment of the spray direction, meeting diverse positioning needs.

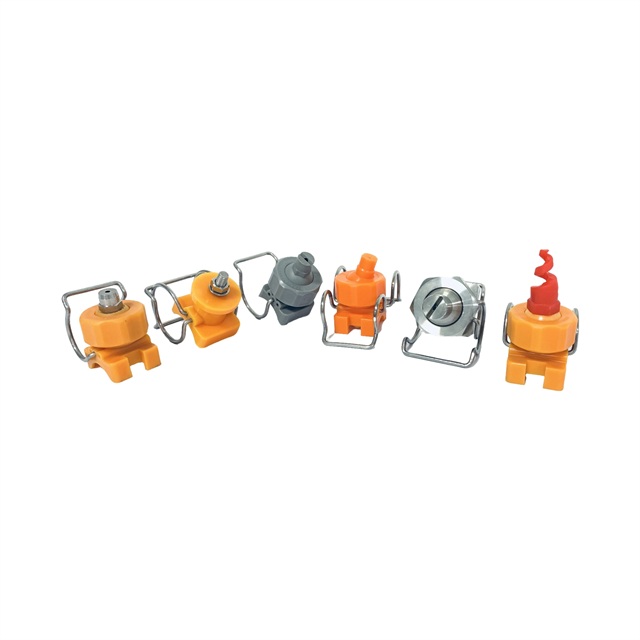

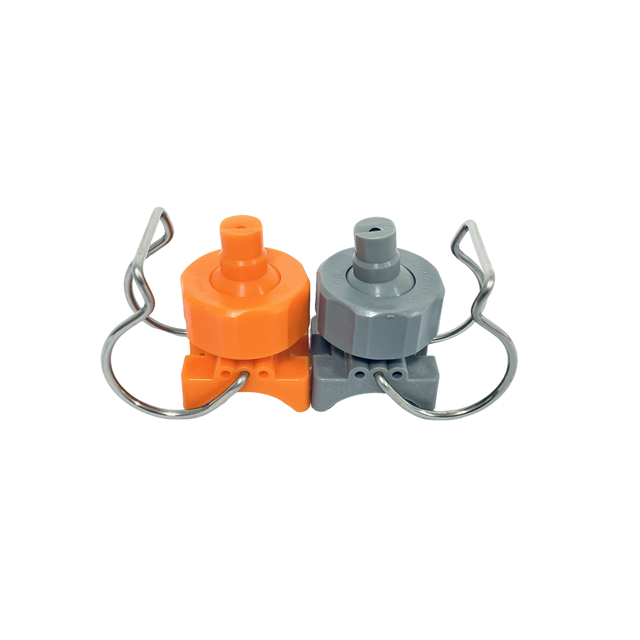

3.Universal Compatibility: Clamp-on base works with various spray heads, meeting diverse spraying needs.
4.Acid-Alkali Resistant: Made of polypropylene(PP), the misting nozzle offers excellent resistant to most acids and alkalis, suitable for harsh chemical environments.
5.High-Pressure Rated: Double-Clamp Jet Spray Nozzle withstands max 8bar (≈116psi) for high-pressure operation.
| Specification |
| Product Name | PP Adjustable Ball Flat Fan Clamp Spraying Nozzle for Water Cleaning |
| Material | PP+304SS/316SS Clamp |
| Clamp/Pipe Size (in.) | 1'', 1-1/4'', 1-1/2'', 2'' |
| Pipe Hole Diameter (mm) | 14/16/18/20 |
| Spray Pattern | Flat Fan, Full Cone, Hollow Cone |
| Operating Pressure | Single Clamp: 0.7-4bar |
| Double Clamp: 3-8bar |
| Color | Orange, Grey and Customized |
| Charateristics | Single/Double Clamp, Easy to Disassemble; Anti-Cogging; Wear Resistance |
| Related Pipe Dimensions |
| Clamp/Pipe Size (in.) | Pipe Outer Diameter（mm) | Pipe Hole Diameter (mm) |
| 1'' | 32-35 | 14/16 |
| 1-1/4'' | 38-43 | 14/16/18 |
| 1-1/2'' | 44-51 | 14/16/20 |
| 2'' | 54-60 | 20 |
| Flow Table of Three Spray Pattern |
| Flat Fan Spray Flow Table |
| Spray Angle at 3bar | Flow Rates (L/min) |
| 50° | 65° | 80° | 95° | 0.7bar | 1bar | 1.5bar | 2bar | 3bar | 4bar |
| 6510 | 8010 | 9510 | 1.9 | 2.3 | 2.8 | 3.2 | 3.9 | 4.6 |
| 6515 | 8015 | 9515 | 2.4 | 3.4 | 4.0 | 4.6 | 5.9 | 6.8 |
| 5020 | 6520 | 8020 | 9520 | 3.8 | 4.6 | 5.6 | 9.5 | 7.9 | 9.1 |
| 5030 | 6530 | 8030 | 9530 | 5.7 | 6.8 | 8.4 | 9.7 | 11.8 | 13.7 |
| 5040 | 6540 | 8040 | 9540 | 7.6 | 9.1 | 11.2 | 12.9 | 15.8 | 18.2 |
| 5050 | 6550 | 8050 | 9550 | 9.5 | 11.4 | 14.0 | 16.1 | 19.7 | 23.0 |
| 5060 | 6560 | 8060 | 9560 | 11.4 | 13.7 | 16.7 | 19.3 | 24.0 | 27.0 |
| 5070 | 6570 | 8070 | 9570 | 13.3 | 16.0 | 19.5 | 23.0 | 28.0 | 32.0 |
| Full Cone Spray Flow Table |
| Tip Type | Flow Rates (L/min) | Spray Angle |
| 0.7bar | 1bar | 1.5bar | 2bar | 3bar | 4bar | 1.5bar | 4bar |
| 6.5B | 2.5 | 2.8 | 3.5 | 4.0 | 4.8 | 5.5 | 50° | 48° |
| 8B | 3.2 | 3.6 | 4.5 | 5.2 | 6.3 | 7.3 | 69° | 71° |
| 10B | 3.8 | 5.1 | 5.6 | 6.4 | 7.9 | 9.1 | 67° | 64° |
| 12.5B | 4.6 | 5.4 | 6.0 | 7.3 | 8.7 | 9.8 | 67° | 59° |
| 15B | 5.7 | 6.7 | 8.1 | 9.3 | 10.2 | 12.7 | 67° | 61° |
| 25B | 9.5 | 10.5 | 13.5 | 15.4 | 18.6 | 21.0 | 67° | 62° |
| 30B | 11.4 | 13.4 | 14.5 | 18.1 | 22.0 | 25.0 | 90° | 83° |
| Hollow Cone Spray Flow Table |
| Tip Type | Flow Rates (L/min) | Spray Angle |
| 0.3bar | 0.7bar | 1bar | 1.5bar | 2bar | 3bar | 4bar | 0.5bar | 1.6bar | 6bar |
| 15-30.1A | 6.2 | 8.8 | 10.4 | 12.6 | 14.5 | 17.6 | 20.2 | 46° | 49° | 51° |
| 25-30.1A | 7.5 | 10.7 | 12.7 | 15.4 | 17.6 | 21.4 | 24.6 | 45° | 47° | 50° |
| 55-50.1A | 13.5 | 19.0 | 22.7 | 27.8 | 31.8 | 38.7 | 44.4 | 38° | 46° | 48° |
| 55-50.3A | 14.0 | 19.2 | 23.0 | 28.0 | 32.0 | 39.2 | 45.2 | 75° | 75° | 76° |
