Core Characteristics
1. Superior Filtration Performance for Core Applications

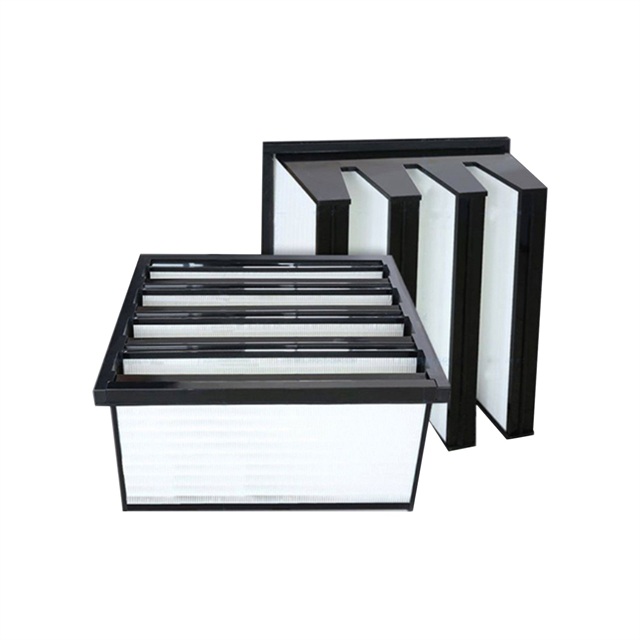

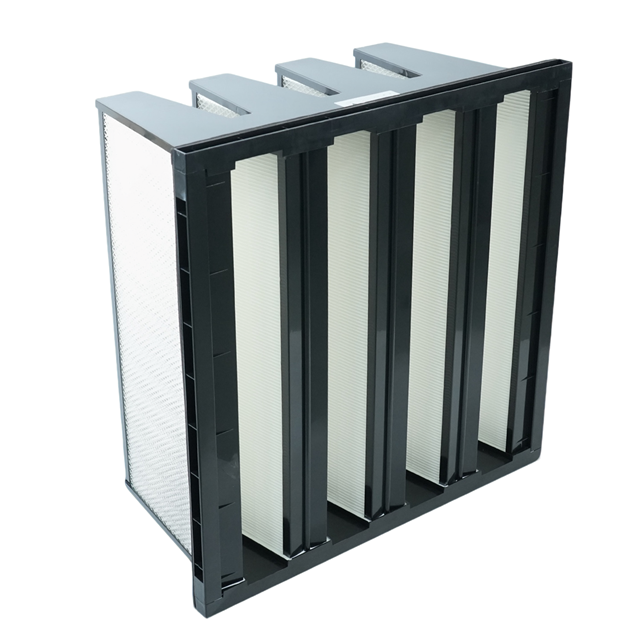

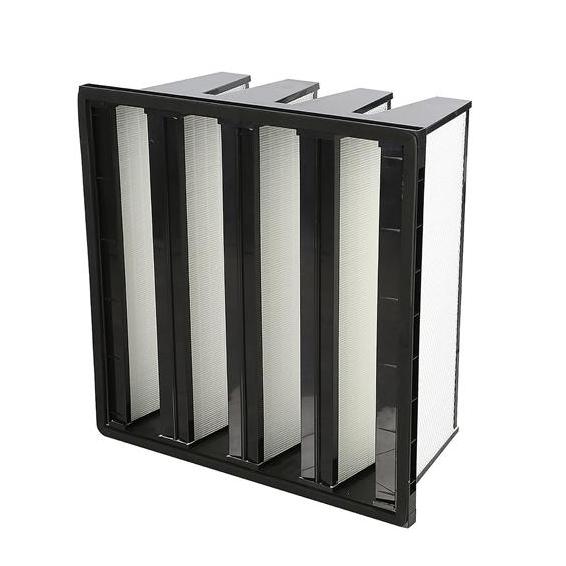

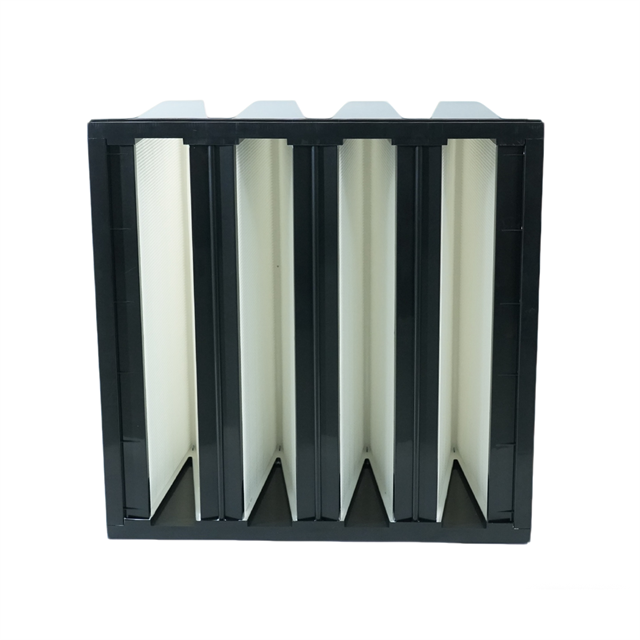

This air filter achieves 99.99% filtration efficiency for 0.3μm particles, capturing fine impurities effectively. With a maximum air handling capacity of 3300m³/h, it is custom-built for terminal filtration of air conditioning units and various high-airflow air purifier systems, ideal for large-scale purification needs in industrial plants, commercial buildings, etc.
2. Low Resistance & Energy Saving, Reducing Operational Costs
Boasting an initial resistance ≤220Pa, the filter maintains stable low-resistance operation even under high-airflow conditions. It effectively cuts down energy consumption of supporting equipment like air conditioners and fans, delivering significant long-term electricity cost savings.
3. Robust Structure, Adapting to Diverse Working Conditions
The frame offers multiple material options including galvanized steel plate, stainless steel, and aluminum alloy V-type. It features high structural strength and anti-deformation capacity, withstanding complex installation and operation environments to extend the overall service life of the equipment.
4. Excellent Environmental Resistance, Wide Application Range
The air purifier filter tolerates a maximum operating temperature of 80℃ and 100% relative humidity. It performs well in harsh conditions such as high temperature and humidity, perfectly meeting purification requirements in food processing, electronic manufacturing, pharmaceutical cleanrooms and other industries.
5. Hassle-Free Maintenance, Improving Management Efficiency
The filter media has outstanding dust-holding capacity for a longer service life. With user-friendly installation design, it requires zero maintenance during operation, greatly reducing downtime for replacement and lowering labor and consumable maintenance costs.
Order Terms
1. MOQ: 20pcs
2. Shipping Terms: FOB, CIF Shanghai
3. Packaging: Standard Export Carton
4. Payment Terms:
1)For small orders: 100% T/T in advance
2)For regular/large orders: 30% T/T deposit for production, 70% balance due before delivery
Flexible terms negotiable for long-term cooperation.
| Specifications | |||||||||
| Model | Dimension (W*H*D)mm | Pleat Count | Rated Air Flow (m³/h) | Initial Resistance (Pa) | Filter Efficiency (%) | Filter Material | |||
| Filter Media | Separator | Sealant | Outer Frame | ||||||
| HV | 295*595*295 | 4 | 1000 | ≤ 220 | ≥ 99.99 Sodium Flame Method | Glass Fiber Filter Paper | Hot-Melt Adhesive | Polyurethane Adhesive | Polystyrene/Galvanized Steel Sheet/Stainless Steel Sheet/Aluminum Alloy Sheet |
| 595*595*295 | 6 | 1500 | |||||||
| 595*595*295 | 8 | 2100 | |||||||
| 595*595*295 | 10 | 2700 | |||||||
| 610*610*295 | 10 | 3300 | |||||||
